KAPI-USB , API Development Board

The KAPI-USB is a compact, versatile development module featuring a high-resolution screen integrated with powerful microcontroller technology. Designed for OEMs and system integrators, it provides a reliable platform for implementing private API integration, intelligent
control, automation, and IoT solutions with seamless connectivity.

Key Features:

• High-Resolution Screen: Compact display supporting colorful graphics and smooth interaction
• Embedded Microcontroller: Efficient processing core capable of running custom firmware for various control applications
• Wireless Connectivity: Supports Wi-Fi and Bluetooth for wireless communication and remote control
• Multi-Protocol Interface: Equipped with standard communication interfaces such as GPIO, I2C, SPI, UART, and ADC, suitable for a wide range of peripherals
• Power Options: Flexible power input via USB or external DC supply
• Compact & Durable Design: Small footprint, ideal for embedded and industrial use
• Development Compatibility: Supports popular development environments for firmware customization.

API & Connectivity

This platform incorporates a specialized API layer designed to enable integration with diverse third-party systems and protocols. It facilitates communication over standard industrial protocols, including Modbus, with support tailored for control systems requiring reliable, seamless interoperability.

API Highlights:

• Universal Compatibility: Designed for integration with a variety of automation and control protocols
• Protocol Support: Full Modbus support (RTU/TCP) for interfacing with established controllers
• Flexible API: Modular architecture allowing customization for unique system requirements
• Remote Access & Control: Enables remote monitoring and data exchange via wireless interfaces,

Applications:

• Building automation interfaces
• Industrial control panels
• Smart home systems
• IoT sensor dashboards
• HMI (Human-Machine Interface) solutions

Support & Contact:

For more information, technical support, or custom solution development, please contact your local distributor or system integrators.

The post KAPI-USB appeared first on Kepler Electronics.

ModBus USB Adapter

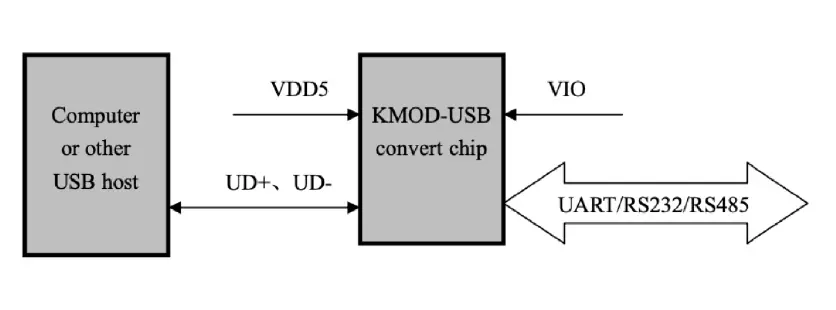

KMOD-USB is a USB bus converter chip, which converts USB to high-speed serial UART interface, provides common MODEM signal, to expand serial UART interface of computer or upgrade common serial devices or MCU to USB bus directly.

Features:

• Full-speed USB device interface, USB 2.0 compatible.
• Built-in firmware, emulate standard UART interface, used to upgrade the original serial peripherals or expand additional serial UART via USB.
• Original serial applications are totally compatible without any modification.
• Support free installation OS which built-in CDC driver or multifunctional high-speed VCP vendor driver.
• Hardware full-duplex serial UART interface, integrated independent transmit-receive buffer, supports communication baud rate varies from 50bps to 6Mbps.
• Support 5, 6, 7 or 8 data bits, supports odd, even, space, mark and no parity.
• Support common MODEM interface signals RTS, DTR, DCD, RI, DSR and CTS.
• Support CTS and RTS hardware automatic flow control.
• Support half-duplex, provides sending status TNOW which support RS485 to switch.
• Support RS232 interface, through external voltage conversion chip.
• Support USB port SV and 3.3V power supply.
• 1/0 independent power supply, supports SV, 3.3V, 2.5V and 1.8V power supply, supports backflow prevention.
• Integrated power-on reset, integrated 12MHz clock, no external crystal required.
• KMOD-USB integrates EEPROM used to configure the chip of VID, PIO, maximum current value, vendor and product information string, etc.
• RoHS compliant SOP16, ESSOP10 and QFN16 lead-free package.

The post KMOD-USB appeared first on Kepler Electronics.

IoT UNITARY CONTROLLER

Specifications

The post KIOT-CN-ZIG appeared first on Kepler Electronics.

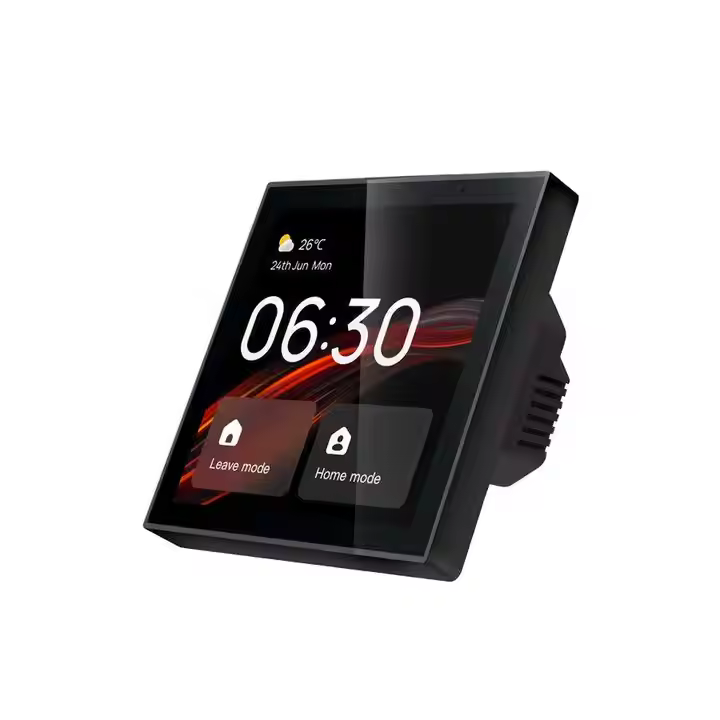

KEPLER Smart Control Panel KCP-TH4 by Kepler Electronics

The KCP-TH4 Smart Control Panel is designed for smart temperature control, directly compatible with central air conditioning fan coil systems. It offers gateway functionality, temperature control, interactive functions, and a scene panel.

Key Features and Highlights:

*   Compatibility: Central air conditioning fan coil systems (verify equipment before installation). Supports DX AC Units,  2-pipe and 4-pipe systems, 0-10V DC output, and optional 485 connectivity.

The post Smart Control Panel KCP-TH4 appeared first on Kepler Electronics.

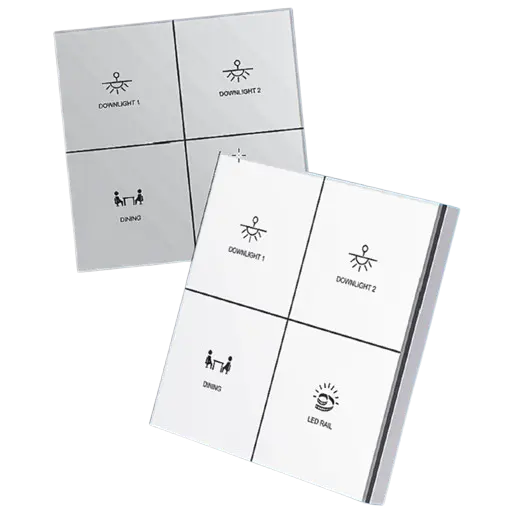

ACR series, Wireless smart Button Switches, intelligent scene control

Kepler Electronics Launches ACR Series of Acrylic Touch Button for Home Automation

Kepler Electronics introduces the ACR series, a customized range of wired and wireless acrylic touch buttons designed for home automation. As an extension to the P Series, the ACR series features an elegant acrylic touch interface.

Key Features and Highlights

Product:

• Wired & Wireless Smart Button Switch

Protocol:

• Zigbee3.0 for wireless communication, Modbus RS485 for wired Communication

Connectivity

• Wireless Frequency: 2.4GHz.
• Remote Control: Mobile remote control through a connected Hub, Webserver, and router.

Power

• Rated Voltage: 100-220V~/50-60Hz., 12-24 VDC for Wired Switches
• Rated Power: LED 500W/Gang (max).
• Standby Power Consumption: ≤0.2W.

Material and Design

• Panel Material: Acrylic with skin-friendly, anti-glare technology to reduce fingerprint smudges.
• Available in multiple colors (black, white, grey).

Functionality:

• Button Types: Physical buttons with quick response.
• Customizable Icons: Users can customize button functions and icons.
• Voice Control: Compatible with smart speaker voice control, supporting Xiaodu (Baidu), Alexa, Siri, and other voice assistants.
• Situational Models: Customizable situational models for various settings (e.g., Dining, Downlight).
• Timer Switch Light: Timing function to set lights on/off.
• Family Sharing: Remote Access via App

Applications

• Suitable for guesthouses, hospitals, clubs, hotels, and villas.

Technical Specifications:

• Standard: IEEE802.11b/g/n.
• Working Temperature: -20°C to 70°C.
• Working Humidity: ≤95%.

Dimensions

• 86mm x 86mm.
• Depth: 25mm.

Components

• Economy shell with Zigbee communication protocol.
• Screw terminal with brass material for strong conductivity.
• Metal support to enhance stability and prevent deformation.

The post Smart Switches ACR Series appeared first on Kepler Electronics.

The LROC-800 Room Controller extends LOYTEC’s L-ROC system with a rich blend of wired, wireless, and electrical interfaces. It is designed for advanced single-room automation applications and scales up to 3 rooms or room segments. Its core feature is a Bluetooth Mesh (SIG) interface for integrating Bluetooth Mesh sensors, luminaires, and other actuators. The device targets the need for cabling reduction in both, new buildings and retrofit scenarios. The LROC-800 Room Controller also seamlessly integrates with native BACnet/IP networks and LonMark Systems at the controller level. Together with the L‑STUDIO software, flexible room solutions can be created and adapted to changing requirements during the project with little effort. Integral parts of the L‑ROC system are a web-based room operation; via an LWEB‑802/803 dashboard and the automatic generation of graphics for the L‑VIS / L-PAD Touch Panel for local operation.

Our room controllers provide all common interfaces and a large number of physical I/ Os for room automation projects. KNX devices are integrated via the KNXnet/ IP interface. DALI lamps and DALI sensors are connected to the DALI interface with an integrated DALI power supply. Up to 16 SMI sunblind motors connect to the SMI interface. L-STAT room operator panels can be connected to the LSTAT port. The port can also be used for BACnet MS/TP devices or generic Modbus RTU/ASCII devices. Dual Ethernet ports allow daisy chaining of L‑ROC controllers ina ring topology and provide BACnet/ IP, LON/ IP, Modbus/ IP, KNXnet/ IP and OPC communication. The LROC-800 has a built-in WLAN interface. 3 TRIACS (0.5A), 4 Relays (10A) and 12 universal inputs outputs (IO) connect various physical inputs and outputs. Our room automation library provides pre-built function modules for all lighting, heating, cooling, ventilation, and sunblinds. Built-in TLS encryption ensures secure operation of the room automation system.

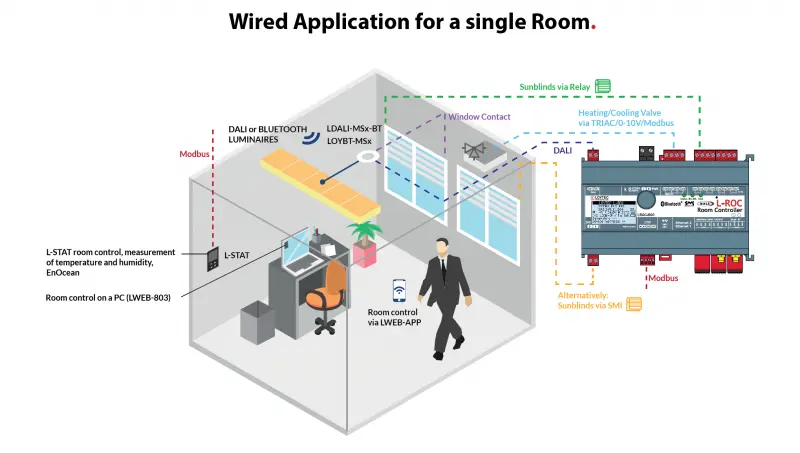

Flexible Room Concept for Room Automation

A room segment is the smallest individually controllable entity in the L‑ROC system. The L-ROC Library provides a set of functions for every room segment, including

• Lighting control with constant light controller
• Sunblind control with angle adjustment and year shade progression
• Temperature control for heating, cooling, and ventilation
• Occupancy detection
• Window monitoring and window contact

The LROC-800 Room Controller can control 3 room segments. Based on the various room segment types, larger buildings can be modeled in a hierarchical manner. Areas are built with an area manager by combining multiple room controllers. A floor manager manages multiple areas in one floor. Depending on the architecture, the building can be split up into areas and floors as needed.

Area/Floor Managers are responsible for handling functions needed for corridor, staircase, and bathroom lighting, or even ventilation. Floor managers facilitate the data communication between the floors and handle floor relevant functions e.g. processing meter data.

Rooms can be created in any size by moving, installing, or removing partition walls. The resulting logical connections between the L‑ROC Room Controllers will be built automatically. All graphical user interfaces and network connections are automatically generated and adapted respectively.

AST for every Room Segment

L‑ROC provides a set of functions for Alarming, Scheduling, and Trending (AST) for every room segment. Each room segment can be operated entirely independently. The AST functions are fully available to higher-level systems through BACnet/ IP and web services (L‑WEB System). Distributed schedulers can be efficiently managed and changed with LWEB‑900.

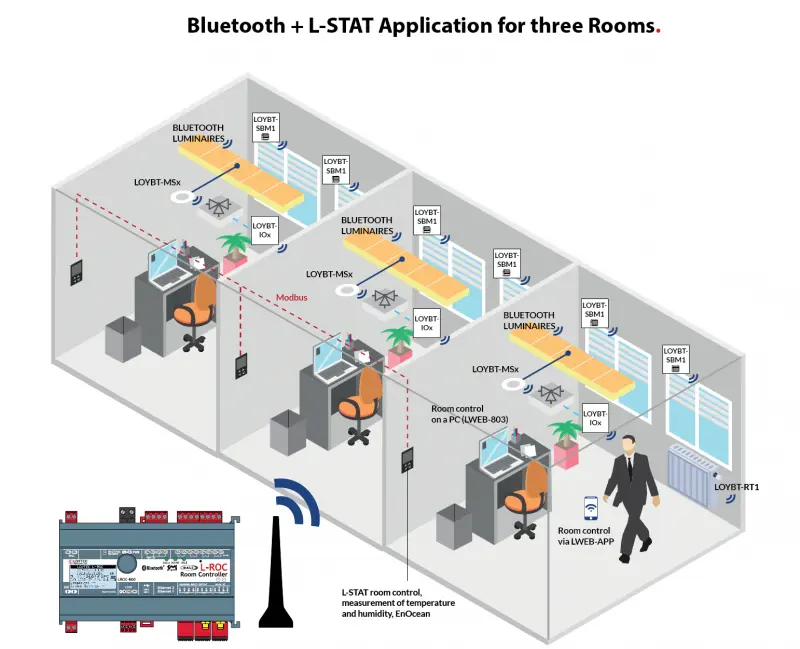

Room Communication through redundant or separated IP Network

L‑ROC Room Controllers are interconnected via a 100Base-T Ethernet or a WIFI network. Each L‑ROC device is equipped with two Ethernet ports. It can either be configured to use the internal switch to interconnect the two ports or every port is configured to work in a separate IP network.

When the Ethernet ports are configured for two separate IP networks, one port can be connected for instance to a WAN (Wide Area Network) with enabled network security (HTTPS) while the second port can be configured to be connected to an insecure network (LAN) where the standard building automation protocols like BACnet/ IP, LON/ IP, or Modbus TCP are present. These devices also feature firewall functionality of course to isolate particular protocols or services between the ports. The built-in VPN function provides for simple VPN setup and secure access to remote sites. The LTE-800 interface enables wireless access to remote sites through a mobile carrier.

Using the internal switch, a daisy chained line topology of up to 20 devices can be built, which reduces costs for network installation. The IP switch also allows the setup of a redundant Ethernet installation (ring topology), which increases reliability. The redundant Ethernet topology is enabled by the Rapid Spanning Tree Protocol (RSTP), which is supported by most managed switches.

Integrated L‑WEB Room Operation

L‑ROC controllers provide graphical user interfaces for room operation directly via an IP connection to the user, without the need for an additional web server. Graphic projects are distributed among the L‑ROC Room Controllers and can be accessed by LWEB‑802/ 803 from any PC workstation, smartphone (by LWEB-APP), or tablet PC running Android or iOS.

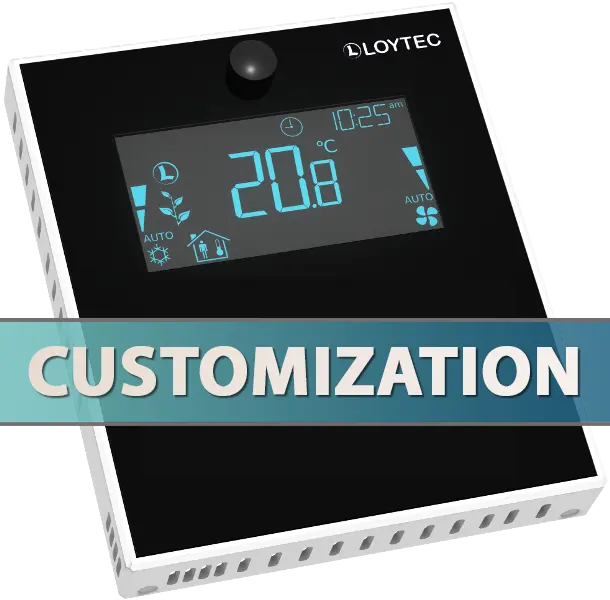

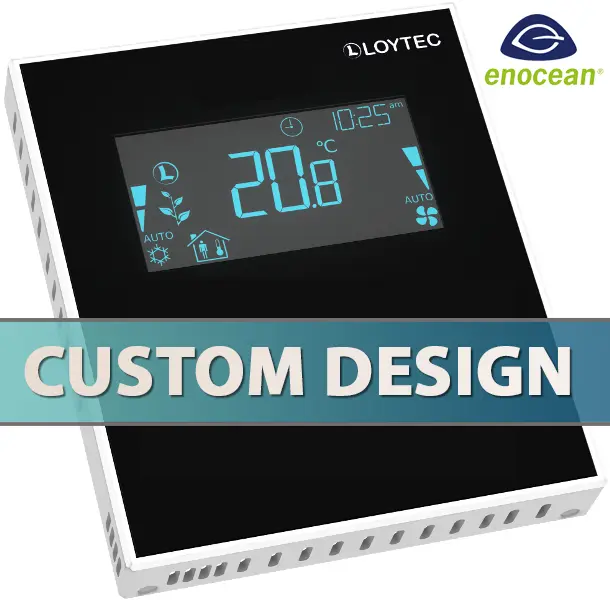

Integration of the L-STAT Room Operator Panel

L-STAT room operator panels can be integrated via RS-485 interface. In addition to the attractive, modern design and intuitive operation, L-STAT provides a range of features to individually increase the room comfort.

Internal sensors measure temperature, humidity, dew point, occupancy, and the CO2 content of the air. There is also the possibility to control room functions via an IR remote control. Standard pushbuttons and external temperature sensors can be integrated through additional inputs.

Connection to Higher-Level Systems

Higher-level systems can seamlessly integrate L‑ROC Room Controllers via BACnet/ IP, LonMark IP‑852, or web services (OPC).

All these protocols are simultaneously available. It is possible to integrate the L‑ROC Room Controller in a BACnet Operator Workstation and at the same time L‑ROC will communicate with other CEA‑709 devices on the IP‑852 channel. Moreover, a higher-level SCADA or ERP System (Facility Management) gets information directly from the L‑ROC Room Controller by using web services based on OPC XML‑DA or OPC UA.

Full LWEB‑900 Support

The L‑WEB System uses web services to communicate with the L‑ROC System. All device and operating parameters of every single L‑ROC Room Controller are automatically synchronized with the LWEB‑900 SQL database. Controllers can be replaced from the database with a backup without user interaction.

L-STUDIO

L‑STUDIO is the world’s first IEC 61499 based room automation system. Any room function can be realized with L‑STUDIO in a distributed system of L‑ROC devices.
We call this new approach in automation “Cloud Control”. In a cloud of L‑ROC devices, all automation functions are mapped automatically to physical hardware. The object-oriented design method allows the efficient reuse of previously implemented functions. In the graphical development environment of L‑STUDIO, areas are created from room segment with just a few mouse clicks. The areas are interconnected to floors and multiple floors form a building. The entire building application is automatically distributed to the L‑ROC Controllers installed in the building.

New functions can be added to the room segment objects after initial configuration. These new functions can be applied individually or to all room segment objects very easily. Comprehensive debugging and watch functions allow for complete building troubleshooting. An extensive library of functions is provided for heating, ventilation, cooling, lighting, sunblind control, and security. With the integrated L‑VIS/ L‑WEB Configurator, graphical pages for L‑VIS Touch Panels and L‑WEB applications can be customized.

Year Shade Progression

Especially in dense city areas, buildings can cast shadows on each other. In case a façade element is shaded by another building, sunblinds can be deactivated for better daylight harvesting. The high-performance L-ROC controllers allow to calculate a 3D model in dxf-Format of the building and its close-by neighbors. The model can be constructed using common 3D CAD software or can be derived from a Building Information Model. In case the scenery changes due to new constructions, only the new buildings have to be inserted in the model. The calculation can be done for each window individually or per shadowing zone.

IoT Integration

The IoT function (Node.js or Node-RED) allows connecting the system to almost any cloud service, either for uploading historical data to analytics services, telemetry using MQTT, delivering alarm messages to alarm processing services or operating parts of the control system over a cloud service (e.g., scheduling based on Web calendars or booking systems). Processing Internet information such as weather data in forecast-based control is also possible. Finally, the JavaScript kernel also allows implementing serial protocols to non-standard equipment in primary plant control.

Features

• Flexible built-in management for room segments
• Room controller for up to 3 room segments
• Networking via redundant IP network
• Programmable with L‑STUDIO (IEC 61499)
• 128×64 graphic display with backlight for device configuration and maintenance
• Extension with physical inputs and outputs using up to two L-IOB I/O Modules (LIOB-45x/55x/56x)
• Local display of device and data point information
• Manual operation using the jog dial or VNC Client
• Integrated AST functions (Alarming, Scheduling, and Trending) for each room segment
• Node.js/Node-RED support for easy IoT integration (e.g. Google calendar, MQTT, Alexa & friends, multimedia equipment,…)
• Event-driven e-mail notification
• Math objects to execute mathematical operations on data points
• Stores customized graphical pages
• Visualization of customized graphical pages through LWEB‑900 (Building Management), LWEB‑803 (Monitoring and Control), LWEB‑802 (Web Browser), or LWEB-APP
• Support of the L‑STAT Room Operator Panel
• Built-in OPC XML‑DA and OPC UA server
• Access to network statistics via SNMP
• Compliant with ANSI/ ASHRAE 135‑2012 and ISO 16484‑5:2012 standard
• Supports BACnet/ IP, BACnet/SC and BACnet MS/ TP
• BACnet Client Function (Write Property, Read Property, COV Subscription)
• BACnet Client Configuration with configuration tool (scan and EDE import)
• B-BC (BACnet Building Controller) functionality, BTL certified
• Integrated BACnet/IP to BACnet/SC and BACnet MS/TP Router including BBMD as well as Slave-Proxy functionality
• Compliant with CEA‑709, CEA‑852, and ISO/ IEC 14908 Standard (LonMark System)
• CEA‑709 integration via LonMark IP‑852 (Ethernet/ IP) channel
• Support of dynamically created or static NVs
• Support of user-defined NVs (UNVTs) and Configuration Properties (SCPTs, UCPTs)
• Connection to KNXnet/ IP
• Gateway functions including Smart Auto-Connect
• Modbus TCP and Modbus RTU/ASCII (Master or Slave)
• Integrated web server for device configuration and monitoring data points
• DALI integration of up to 64 DALI lamps
• Integrated DALI power supply, 16 V DC, 116 mA guaranteed supply current, 125 mA max. supply current
• Test and assignment of DALI devices via the web interface
• Replacement of DALI devices without additional software tools via the graphic display and jog dial
• Supports up to 16 DALI sensors
• Supports up to 64 DALI pushbuttons
• Supports the control of standard loads in the power grid via LDALI-RM5/RM6/RM8 Relay Modules
• Supports DALI-2 devices (drivers and input devices)
• DALI-2 certified, compliant with IEC 62386-101 and IEC 62386-103
• Support DALI color control (DT8 tunable white & full color control)
• Supports lamp burn-in mode
• Integrated DALI Protocol Analyzer
• Integrated WLAN interface
• Connection to EnOcean wireless devices via LENO‑80x Interface or L-STAT EnOcean antenna
• Supports MP-Bus through LMPBUS-804 Interface
• Supports SMI (Standard Motor Interface)
• Supports LTE through LTE-800 Interface
• Supports RS-232 through LRS232-802 Interface
• Stores user-defined project documentation
• Configurable Bluetooth beacons and services: indoor navigation, asset tracking (requires LIC-ASSET license) and access to LWEB-900 room control solution

LROC-800 Bluetooth Mesh Room Controller Products

LROC-800
	Bluetooth Mesh Room Controller for room segment, aisle, floor, building, or campus management
	Start quote request  Documentation and Software
LIC-ASSET
	LIC-ASSET, Add-on Software License to activate asset tracking
	Start quote request  Documentation and Software
L-STUDIO
	Development and integration platform for programmable LOYTEC controllers
	Start quote request  Documentation and Software
LTRAIN-LSTUDIO
	L-STUDIO Training (3 days)
	Start quote request  Documentation and Software
LOYTRAIN-LROC-C
	Class training – Learn how to implement L-ROC projects including project planning, programming and installation of all devices
	Start quote request  Documentation and Software
LOYTRAIN-LROC-O
	Learn how to install, commission and parameterize L-ROC devices in an L-ROC projects (online training, free of charge)
	Start quote request  Documentation and Software

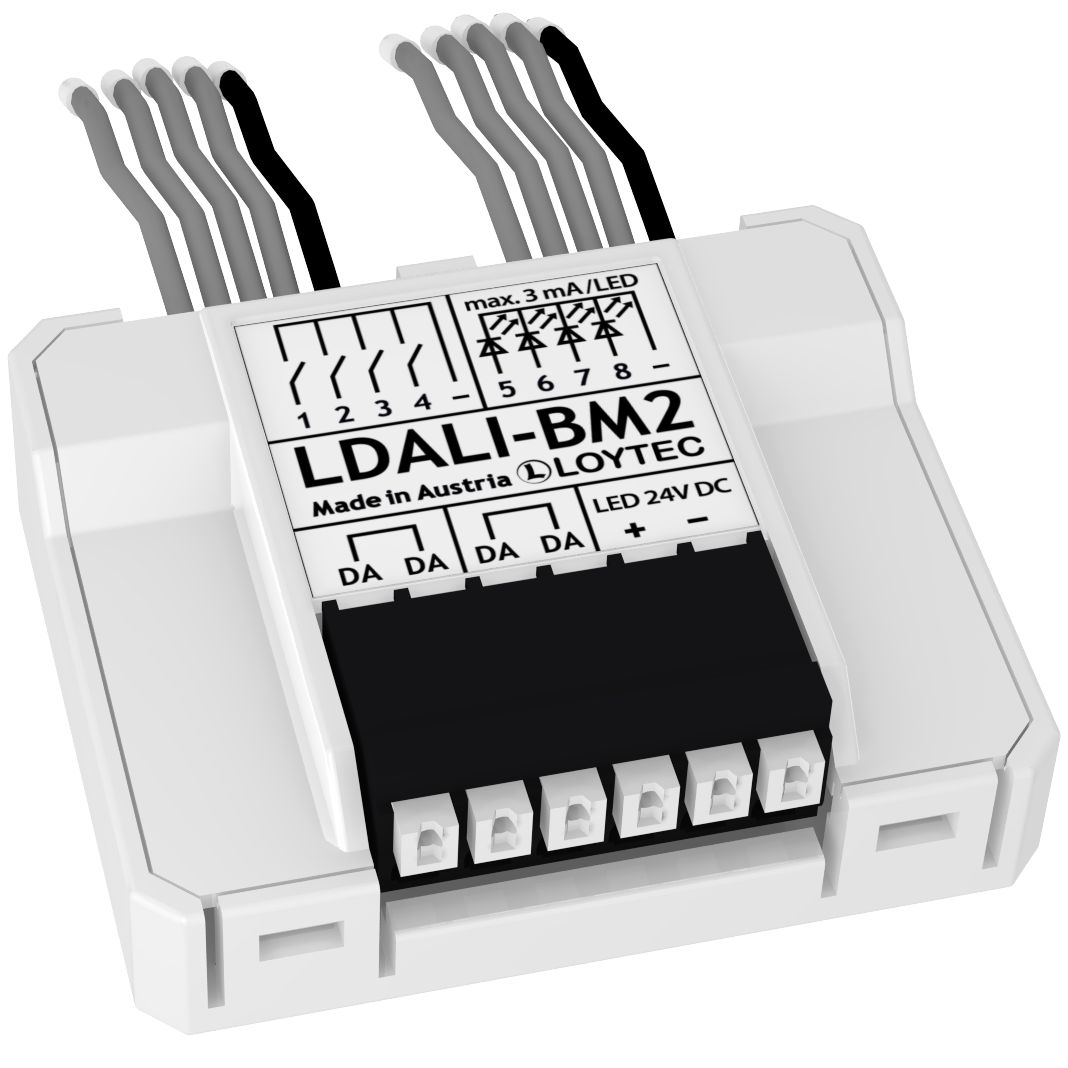

LDALI-BM2
	Quadruple DALI pushbutton coupler
	Start quote request  Documentation and Software
LDALI-RM5
	DALI Relay Module 10 A, Analog Interface 1 – 10 V
	Start quote request  Documentation and Software

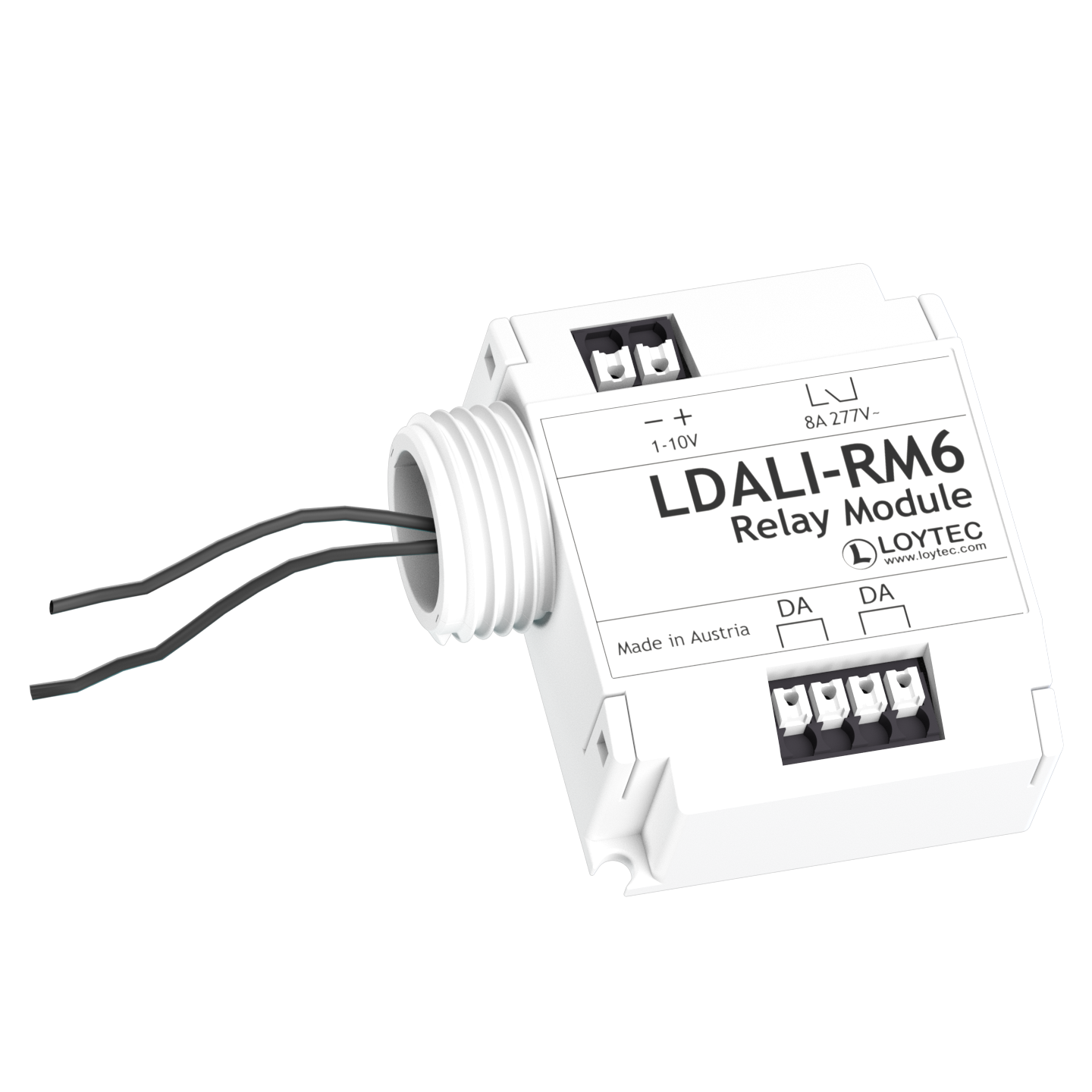

LDALI-RM6
	DALI Relay Module 10 A, Analog Interface 1 – 10 V, “spud-mount”
	Start quote request  Documentation and Software
LDALI-RM8
	DALI Relay Modul, 8 channel
	Start quote request  Documentation and Software
LDALI-PD1
	DALI Phase-Cut Dimmer Module
	Start quote request  Documentation and Software
LDALI-PWM4
	PWM module, DALI, 4 x 3 A LED outputs, 24 V DC ext.
	Start quote request  Documentation and Software
LDALI-PWM4-TC
	PWM module tunable white, DALI, 4 x 3 A LED outputs, 24 V DC ext.
	Start quote request  Documentation and Software
LDALI-PWM4-RGBW
	PWM module RGBW, DALI, 4 x 3 A LED outputs, 24 V DC ext.
	Start quote request  Documentation and Software

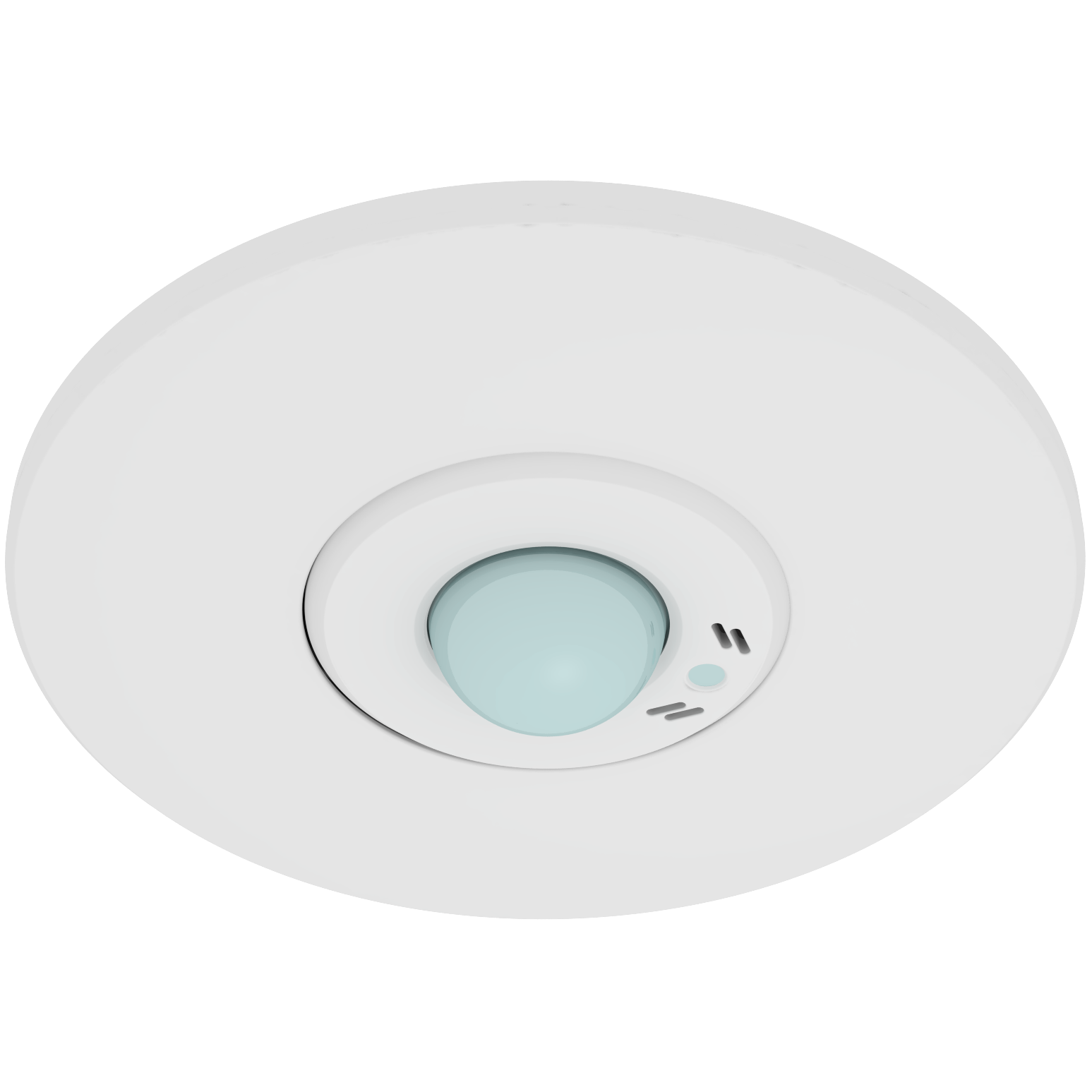

LDALI-MS2-BT
	DALI-2 multi-sensor (presence detection, illuminance sensor, IR receiver, temperature sensor, humidity sensor, 3 digital inputs, Bluetooth), up to 12 m mounting height
	Start quote request  Documentation and Software

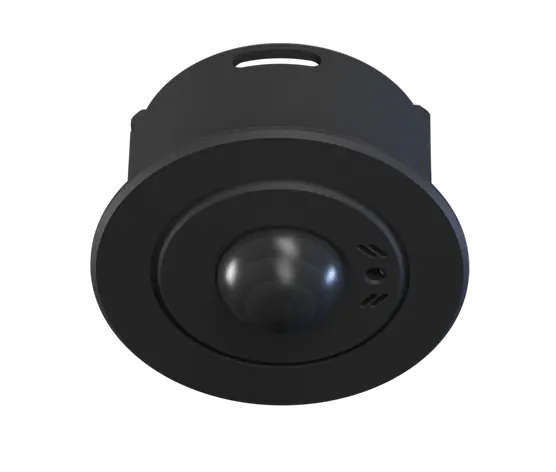

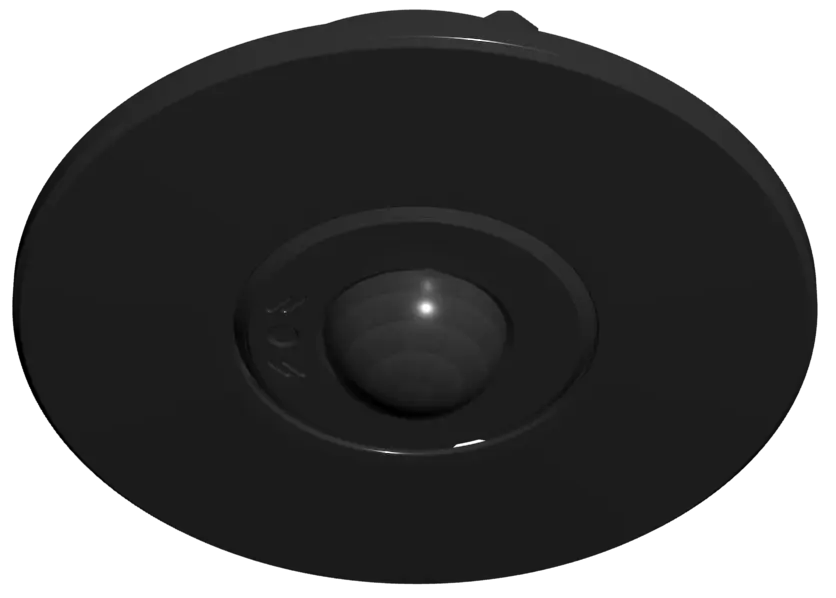

LDALI-MS2-BT-B
	DALI-2 multi-sensor (presence detection, illuminance sensor, IR receiver, temperature sensor, humidity sensor, 3 digital inputs, Bluetooth), up to 12 m mounting height (expected availability Q2 2025)
	Start quote request  Documentation and Software

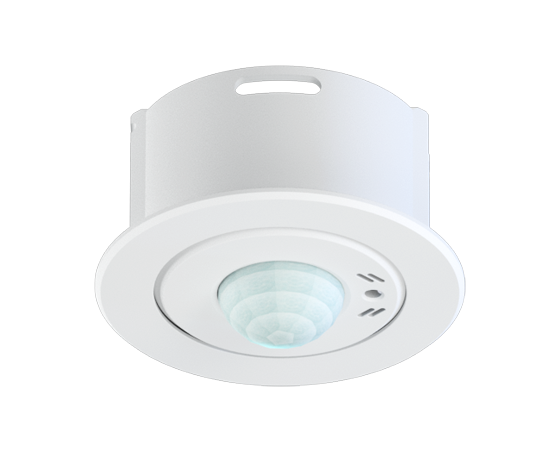

LDALI-MS3-BT
	DALI-2 multi-sensor (presence detection, illuminance sensor, IR receiver, temperature sensor, humidity sensor, 3 digital inputs, Bluetooth), up to 12 m mounting height
	Start quote request  Documentation and Software
LDALI-MS3-BT-B
	DALI-2 multi-sensor (presence detection, illuminance sensor, IR receiver, temperature sensor, humidity sensor, 3 digital inputs, Bluetooth), up to 12 m mounting height (expected availability Q2 2025)
	Start quote request  Documentation and Software
LDALI-MS4-BT
	DALI-2 multi-sensor (presence detection, illuminance sensor, IR receiver, temperature sensor, humidity sensor, 3 digital inputs, Bluetooth, flat lens), up to 5 m mounting height
	Start quote request  Documentation and Software
LOYBT-IO1
	LOYBT I/O Module: 12 x Universal I/O (U, I, R), 6 DO (4 x Relay; 2 x TRIAC)
	Start quote request  Documentation and Software
LOYBT-MS2
	Bluetooth SIG Mesh qualified multi-sensor (presence detection, lux sensor, IR receiver, temperature sensor, humidity sensor, 3 digital inputs, Bluetooth Mesh), up to 12 m mounting height, total diameter 104 mm, white
	Start quote request  Documentation and Software
LOYBT-MS2-B
	Bluetooth SIG Mesh qualified multi-sensor (presence detection, lux sensor, IR receiver, temperature sensor, humidity sensor, 3 digital inputs, Bluetooth Mesh), up to 12 m mounting height, total diameter 104 mm, black (expected availability Q2 2025)
	Start quote request  Documentation and Software

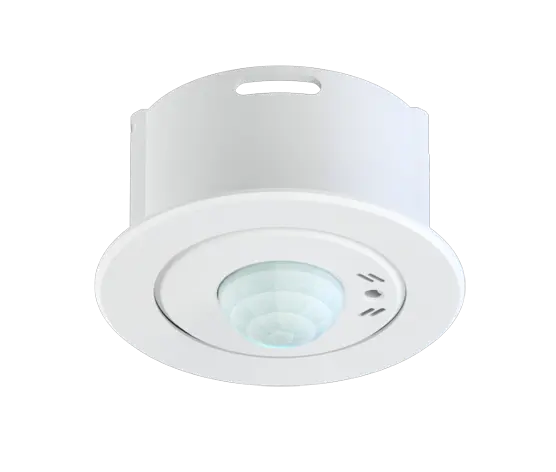

LOYBT-MS3
	Bluetooth SIG Mesh qualified multi-sensor (presence detection, lux sensor, IR receiver, temperature sensor, humidity sensor, 3 digital inputs, Bluetooth Mesh), up to 12 m mounting height, total diameter 68 mm, white
	Start quote request  Documentation and Software
LOYBT-MS3-B
	Bluetooth SIG Mesh qualified multi-sensor (presence detection, lux sensor, IR receiver, temperature sensor, humidity sensor, 3 digital inputs, Bluetooth Mesh), up to 12 m mounting height, total diameter 68 mm, black (expected availability Q2 2025)
	Start quote request  Documentation and Software
LOYBT-MS4
	Bluetooth SIG Mesh qualified multi-sensor (presence detection, lux sensor, IR receiver, temperature sensor, humidity sensor, 3 digital inputs, Bluetooth Mesh, flat lens), up to 5 m mounting height, total diameter 68 mm, white
	Start quote request  Documentation and Software
LOYBT-SBM1
	Sunblind Module with Bluetooth SIG qualified stack
	Start quote request  Documentation and Software
LOYBT-TEMP1
	Bluetooth Mesh temperature sensor (5 pieces per package)
	Start quote request  Documentation and Software
LOYBT-TEMP2
	Bluetooth Mesh temperature and vibration sensor (5 pieces per package)
	Start quote request  Documentation and Software

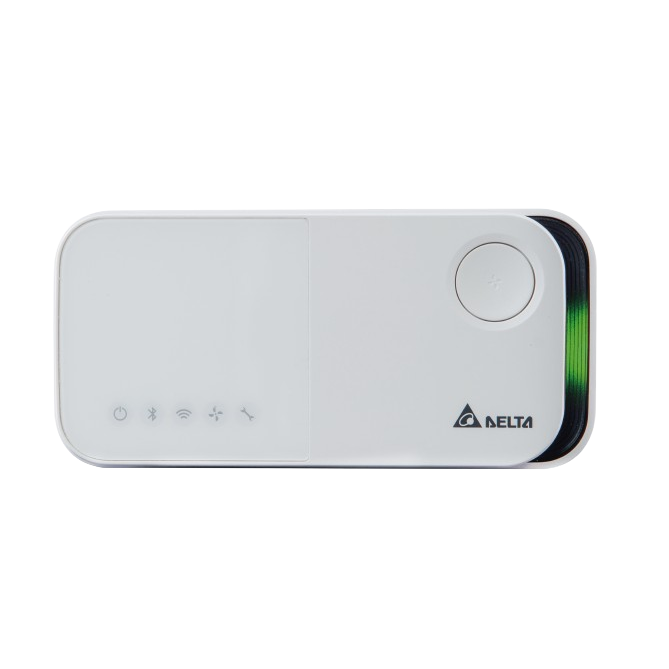

LOYUNO-L
	UNOlite UNO-L Indoor Air Quality Sensor
	Start quote request  Documentation and Software
LSTAT-80x-CUSTOM
	One-time customization cost for L-STAT custom design
	Start quote request  Documentation and Software
LSTAT-810-GX-LX-CU
	LSTAT-800 based custom design, includes EnOcean interface, minimum quantity 100 pcs, enclosure G1: silver, G2: black, G3: white; custom print Lx, lead time 10 weeks (needs LSTAT-80x-CUSTOM)
	Start quote request  Documentation and Software
LSTAT-812-GX-LX-CU
	LSTAT-802 based custom design, includes EnOcean interface, minimum quantity 100 pcs, enclosure G1: silver, G2: black, G3: white; custom print Lx, lead time 10 weeks (needs LSTAT-80x-CUSTOM)
	Start quote request  Documentation and Software
LSTAT-810-G3-L0
	Remote EnOcean Antenna, Europe, White
	Start quote request  Documentation and Software
LSTAT-820-G3-L0
	Remote EnOcean Antenna, USA/CA, White
	Start quote request  Documentation and Software
LSTAT-830-G3-L0
	Remote EnOcean Antenna, Japan, White
	Start quote request  Documentation and Software
L-TEMP2
	External temperature sensor (NTC10K) for use with L-IOB Universal Inputs
	Start quote request  Documentation and Software
LMPBUS-804
	MP-Bus Interface for 16 devices per channel, up to 4 channels
	Start quote request  Documentation and Software
LSMI-804
	Standard Motor Interface for 64 motors, 4 SMI channels via USB
	Start quote request  Documentation and Software
LTE-800
	LTE Interface
	Start quote request  Documentation and Software
LRS232-802
	USB to 2x RS-232 Interface
	Start quote request  Documentation and Software
LENO-800
	EnOcean Interface 868 MHz Europe
	Start quote request  Documentation and Software
LENO-801
	EnOcean Interface 902 MHz USA/Canada
	Start quote request  Documentation and Software
LENO-802
	EnOcean Interface 928 MHz Japan
	Start quote request  Documentation and Software

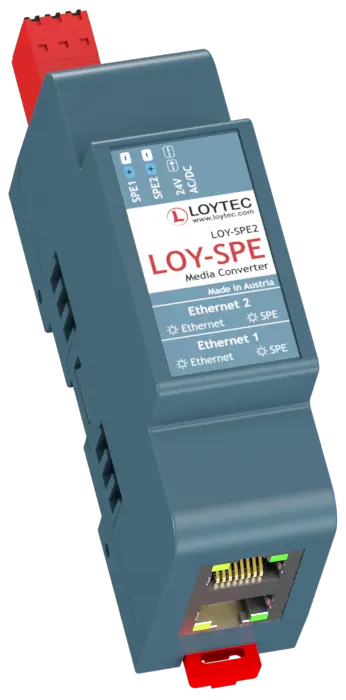

LOY-SPE2
	Dual Single-Pair-Ethernet Converter
	Start quote request  Documentation and Software
LIOB-450
	LIOB-IP852 I/O Module: 8 UI, 2 DI, 2 AO, 8 DO (4 x Relay 6 A, 4 x Triac 0.5 A)
	Start quote request  Documentation and Software
LIOB-451
	LIOB-IP852 I/O Module: 8 UI, 12 DI
	Start quote request  Documentation and Software
LIOB-452
	LIOB-IP852 I/O Module: 6 UI, 6 AO, 8 DO (8 x Relay 6 A)
	Start quote request  Documentation and Software
LIOB-453
	LIOB-IP852 I/O Module: 6 UI, 6 AO, 5 DO (4 x Relay 16 A, 1 x Relay 6 A)
	Start quote request  Documentation and Software
LIOB-454
	LIOB-IP852 I/O Module: 7 UI, 4 AO, 7 DO (5 x Relay 6 A, 2 x Triac 0.5 A), 1 Pressure Sensor
	Start quote request  Documentation and Software
LIOB-550
	LIOB-BIP I/O Module: 8 UI, 2 DI, 2 AO, 8 DO (4 x Relay 6 A, 4 x Triac 0.5 A)
	Start quote request  Documentation and Software
LIOB-551
	LIOB-BIP I/O Module: 8 UI, 12 DI
	Start quote request  Documentation and Software
LIOB-552
	LIOB-BIP I/O Module: 6 UI, 6 AO, 8 DO (8 x Relay 6 A)
	Start quote request  Documentation and Software
LIOB-553
	LIOB-BIP I/O Module: 6 UI, 6 AO, 5 DO (4 x Relay 16 A, 1 x Relay 6 A)
	Start quote request  Documentation and Software
LIOB-554
	LIOB-BIP I/O Module: 7 UI, 4 AO, 7 DO (5 x Relay 6 A, 2 x Triac 0.5 A), 1 Pressure Sensor
	Start quote request  Documentation and Software
LIOB-560
	LIOB-BIP I/O Modul: 20 Universal I/O (IO)
	Start quote request  Documentation and Software
LIOB-562
	LIOB-BIP I/O Module: 40 Universal I/O (12 optionally with 4-20 mA Current Output)
	Start quote request  Documentation and Software

The post LROC-800 Bluetooth Mesh Room Controller appeared first on Kepler Electronics.

The post KE-AC-VRF appeared first on Kepler Electronics.

ON / OFF MODBUS THEMROSTAT with 2 Digital input

ON / OFF MODBUS THEMROSTAT with 2 Digital input

The post KSTAT-FC11-N-2 appeared first on Kepler Electronics.

ON / OFF WIFI THEMROSTAT

ON/OFF WIFI THEMROSTAT

The post KSTAT-FC11-W appeared first on Kepler Electronics.

MODULATING MODBUS THEMROSTAT with 24 VAC output for Valve

The post KSTAT-FC11-NM-24 appeared first on Kepler Electronics.

Smart Combined Gateway & Thermostat FOR DX UNIT

Smart Combined Gateway & Thermostat FOR DX UNIT

The post KE-AC-TGW appeared first on Kepler Electronics.

ON / OFF MODBUS THEMROSTAT

ON / OFF MODBUS THEMROSTAT

The post KSTAT-FC11-N appeared first on Kepler Electronics.
